BKV20AGE

Automatic motor with electronics 2000kg

Name: Automatic motor with electronics 2000kg
Brand: umakov-sk
SKU: BKV20AGE
Price: 651.02 EUR
Availability: InStock

Mark: Came, Max. wing length: 20m, Module of the gear comb: mod 4, Recommended weight of the wing: 1000kg, Use: Industry, End point: Magnetic end stop, Drive slowdown: Drive decelerate before endpoint, Motor power supply: AC 230V, Performance: 250W, Force: 1350N, Speed: 12 m/min, Controller: ZN8, Master/Slave: Yes, Protection level: IP54, Encoder: Yes

€651,02

without VAT

€800,75

with VAT

Stock availability

SK Krompachy > 10

SK Banská Bystrica 0

SK Bratislava R1 0

SK Senec 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Description

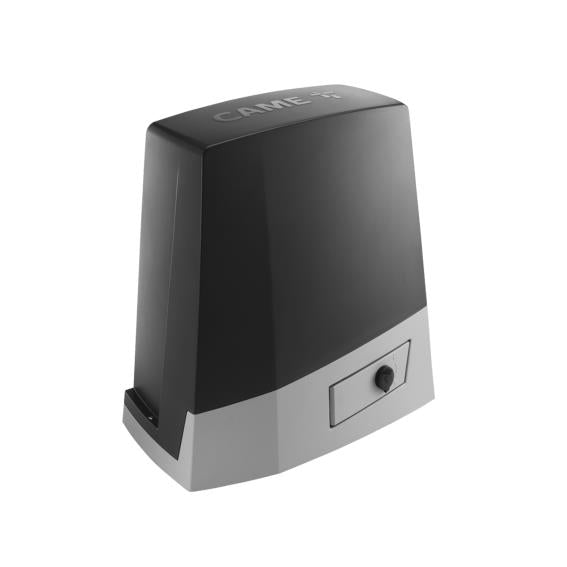

The Came BKV20AGE operator represents a new generation of automation for sliding gates, combining powerful performance with intelligent functions.
It is designed for intensive use, making it an ideal choice not only for larger private residences, but also for industrial facilities and apartment buildings.

Main advantages and technologies

Adaptive Speed Torque technology: This system continuously evaluates the weight and weather conditions (e.g. wind or friction), ensuring smooth movement and constant gate speed in all circumstances.
36 V DC motor with encoder: The 36 V motor enables safe and quiet operation with a high output of 250 W. The encoder ensures millimetre-precise deceleration before the end positions.

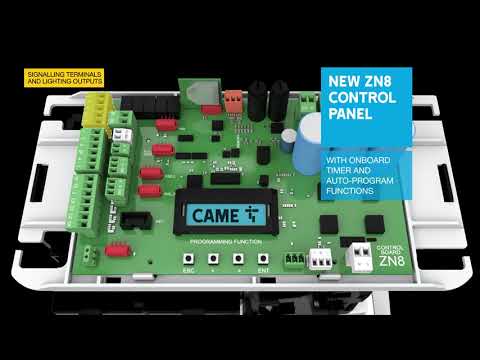

Fully graphic display: The ZN8 control unit is equipped with a display that significantly simplifies programming, diagnostics and management of up to 250 users.
Magnetic limit switches: Unlike mechanical switches, magnetic switches are more resistant to freezing and dirt, ensuring trouble-free operation even in demanding winter conditions.
Smart connectivity: Supports CAME CONNECT technology, allowing you to control and monitor your gate remotely via smartphone using the cloud.

Technical specification
