BKS-2200T-ZKIT

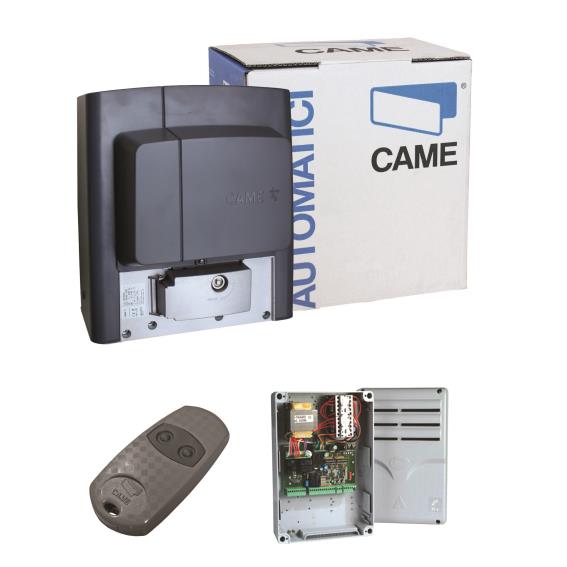

CAME automation for sliding gates, set, max 2200kg

Mark: Came, Max. wing length: 10m, Module of the gear comb: mod 6, Recommended weight of the wing: 1200kg, Use: Industry, Frequency (MHz): 433, Code type: Multi (fix/rolling), Drive slowdown: Drive not decelerate, Motor power supply: AC 400V, Performance: 520W, Force: 1650N, Speed: 10,5 m/min, Power supply: AC 400V, Controller: ZT6N, Master/Slave: Áno, Protection level: IP44

€915,71
without VAT
€1.126,32
with VAT
Tax included Shipping calculated at checkout.
SET
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Parametre

Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
10m
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 6
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
1200kg
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
Use
POUŽITIE
Industry
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Multi (fix/rolling)
Drive slowdown
Information about the drive slowdown before the end position
Drive not decelerate
Motor power supply
Drive-unit power supply
AC 400V
Performance
520W
Force
1650N
Speed
Parameter of the drive feed speed
10,5 m/min
Power supply
Drive-unit power supply
AC 400V
Controller
ZT6N
Master/Slave
Áno
Protection level
IP44

Časti zostavy

Aut. motor bez elektroniky 2200kg - 400V, mod.6 Aut. motor bez elektroniky 2200kg - 400V, mod.6

CAME automation without electronics 2200kg - 400V BKS22TGS

1 pcs
Mark
Came
Max. wing length
10m
Module of the gear comb
mod 6
Skrinka s elektronikou pre BK-2200T 400V

Guiding electronics CAME 400V ZT-6

1 pcs
Mark
Came
Rádiová karta 433,9 MHz

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came
Came TOP, Diaľkové ovládanie fix code, 2CH, CAME

Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Fix
Fotobunka na omietku max. 10m Fotobunka na omietku max. 10m

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
