ATS-5-AGS-LEFT/RIGHT-ZKIT
Came drive for single-leaf gate, set with photocells
€442,54
Unit price
/
Unavailable
without VAT
with VAT
Tax included
Shipping calculated at checkout.
Stock availability
Kontakt
Kontakt
Add some general information about your delivery and shipping policies.
lubomir.petruska@umakov.sk
+421915093533 +393483490444

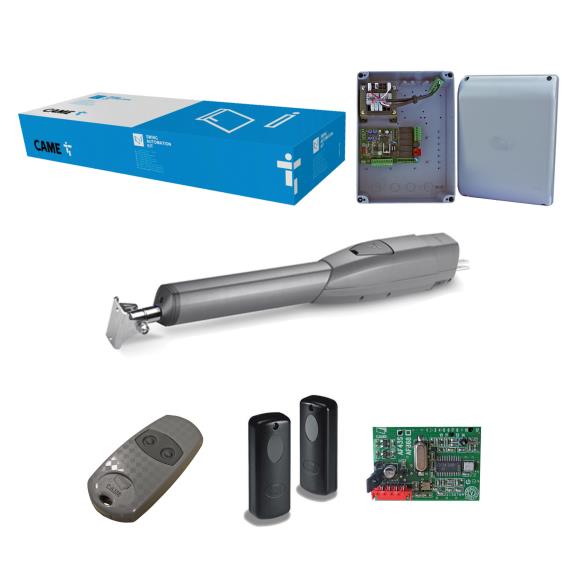

Came drive for single-leaf gate, set with photocells
€442,54
Unit price
/
Unavailable
Popis

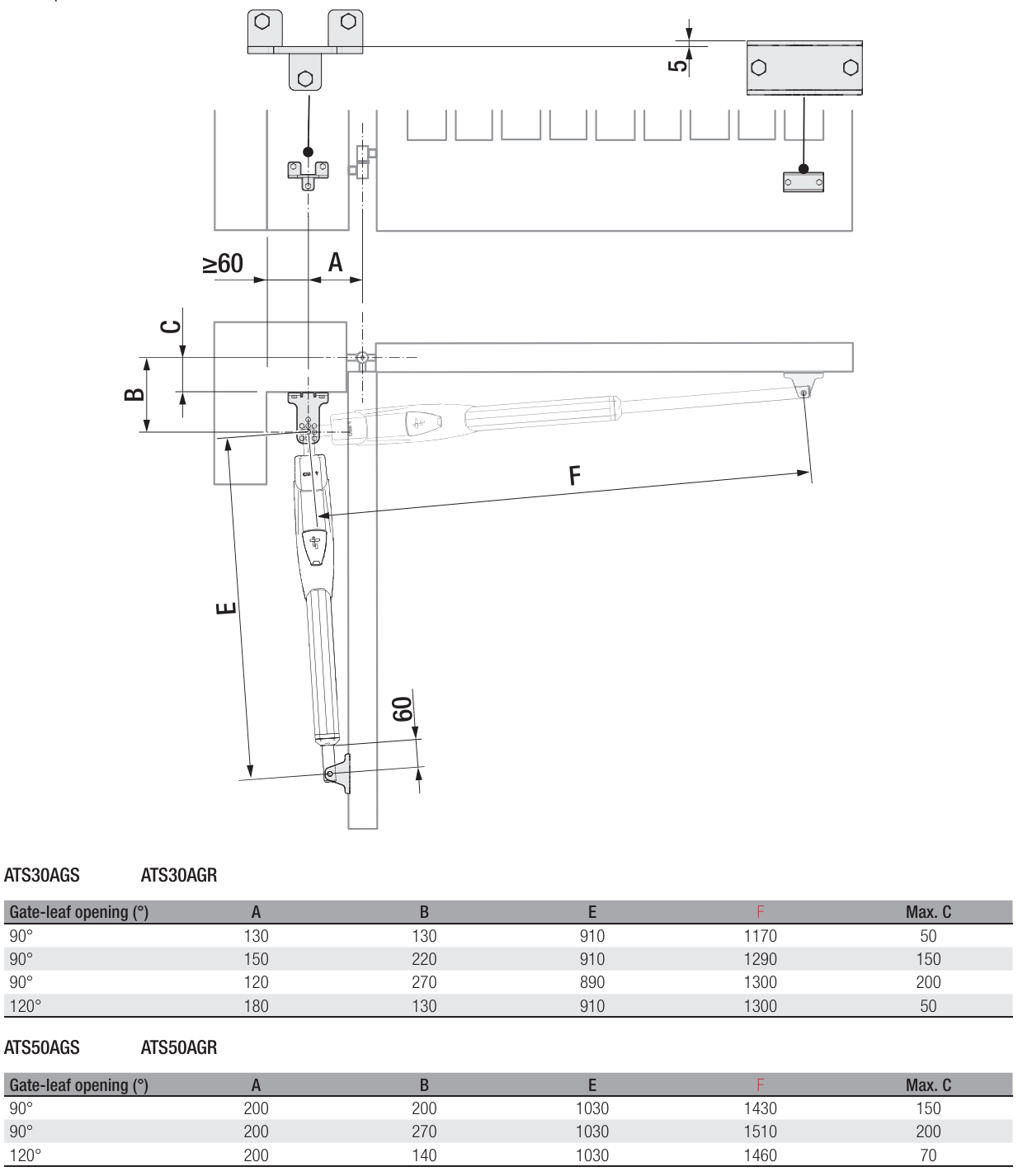

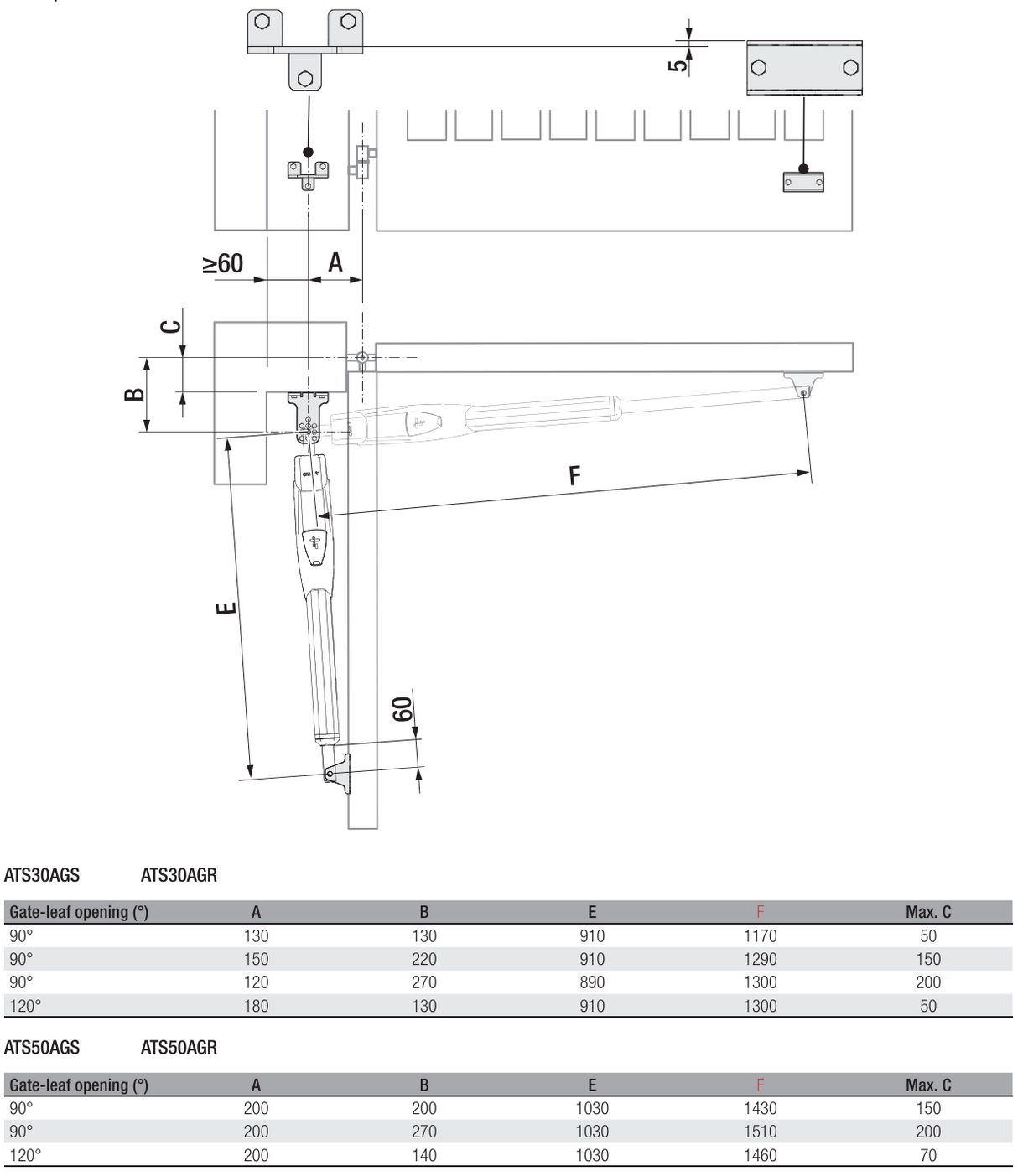

Possibility to anchor the drive to a wide post, the distance from the gate wing hinge axis to the edge of the post can be up to 200mm.
Parametre
Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
5m
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
200kg
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
Informácia o potrebe koncových dorazov brány pri zvolenom pohone.
No need end points
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Multi (fix/rolling)
Parts of the set
null
Power supply
Drive-unit power supply
AC 230V
Motor power supply
Drive-unit power supply
AC 230V
Performance
250W
Force
400-3000N
Speed
Parameter of the drive feed speed
90° - 20s
Capacitor
10uF
Časti zostavy
CAME drive for swing gate ATS-50-AGS
1 pcs
Mark
Came
Max. wing length
5m
Recommended weight of the wing
200kg
Electronics cabinet for double-leaf gate ZF-1N
1 pcs
Mark
Came
Radio card 433,9 MHz AF-43-S
1 pcs
Mark
Came
Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE
1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Fix
Photocell for plaster montage max. 10m DIR-10
1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
