Description

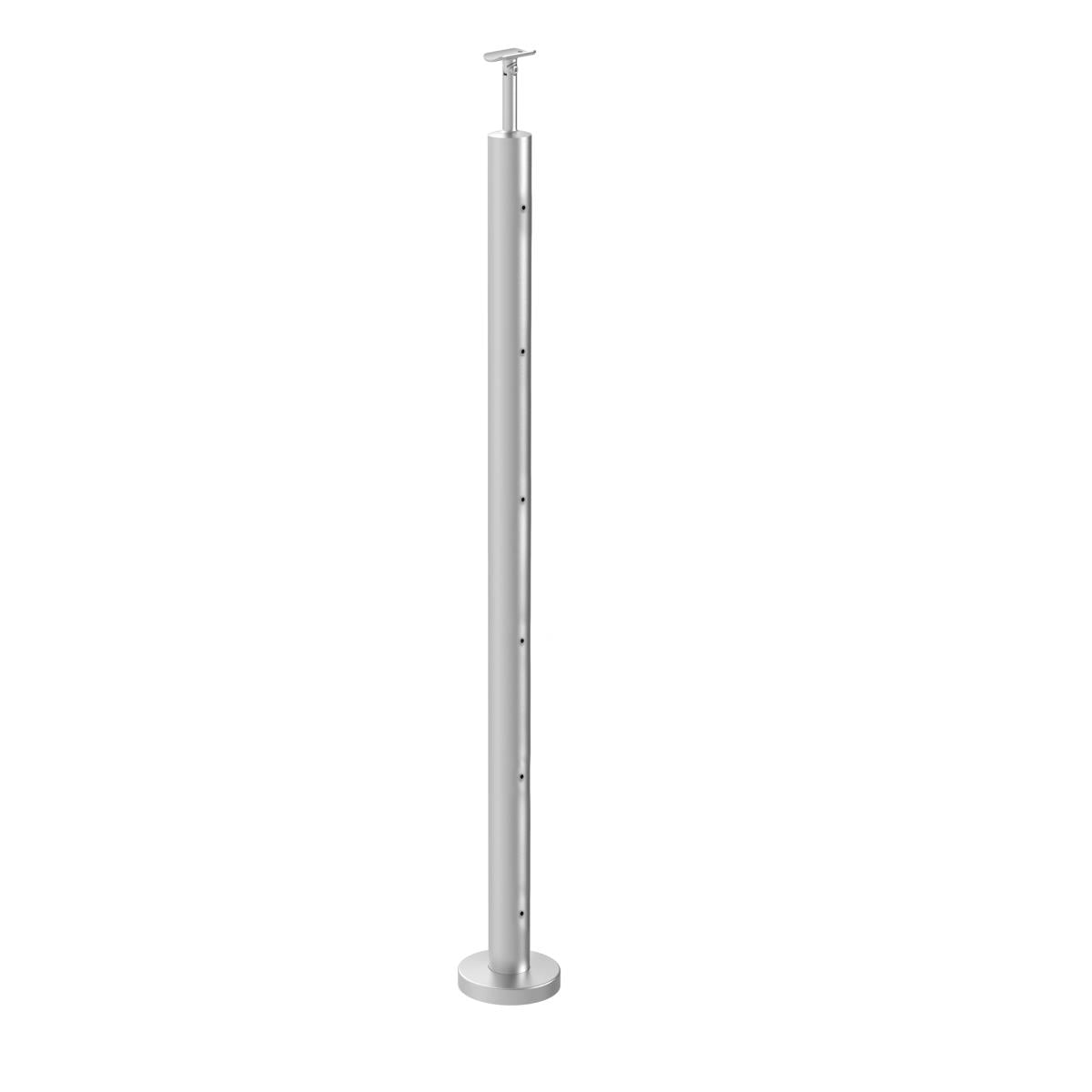

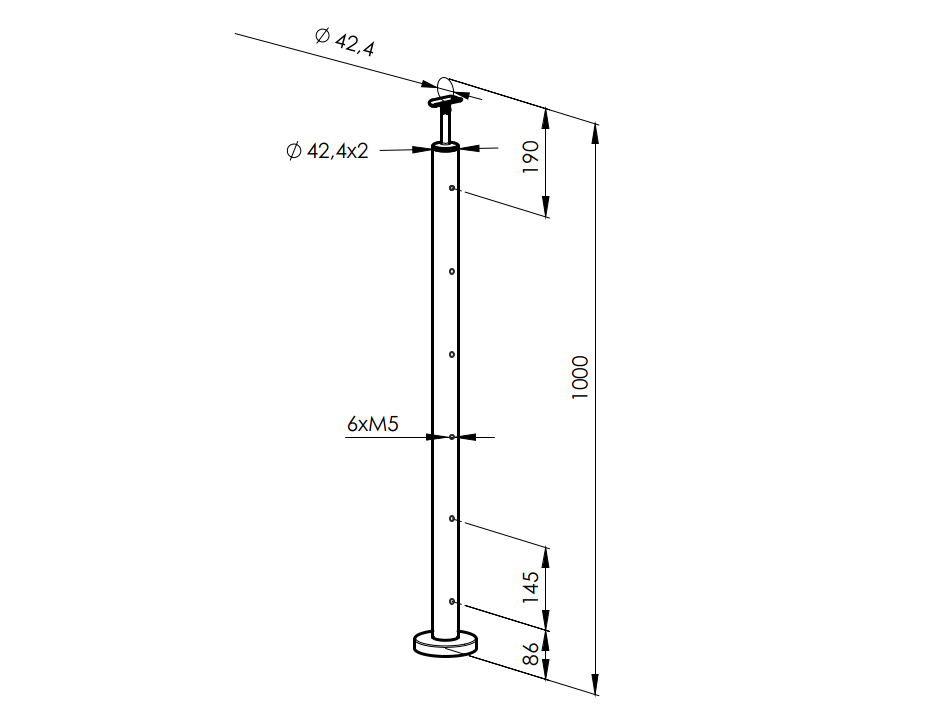

Stainless steel post D42.4 mm for handrail D42.4mm. Top mounting, horizontal infill 5 x d12 mm. Designed for straight railing height of 100 cm, for installation with a maximum span of up to 12 m. Possibility to adjust the slope of the infill and handrail.
Parameters
Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined
Type/Height
Použitie - definuje použitie na rovinu alebo schodisko, Výška - 90cm alebo 100cm.
Plane/1000mm
Anchoring
Určuje materiál, na ktorý sa ukotvuje daná položka.
Top
Download
Parts of set
Sutured brushed inox pipe A/42,4x2-1000
1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
Post
D42,4x2
Adjustable handrail bracket A/0718-242
1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
Effect
Natural
Required products
Round base cover A/0512-042
1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
Effect
Natural
Flange A/0940-042-N
1 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
Post
D42,4x2
Required products
Small head rivet nut, stainless steel, AISI304, M5mm A-FTT-M5
6 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
12
