FG/S-SSG-R7016-SET

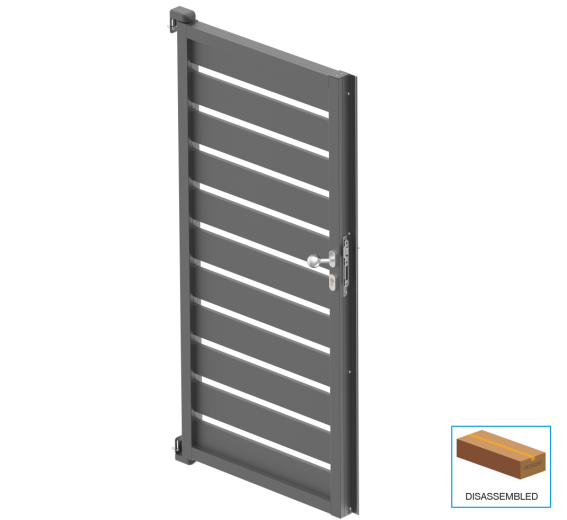

Single-wing aluminium gate 1.025x1.85m with 20x100 R7016 filling - set

Material: Stainless steel AISI 304/Aluminium, Surface finish: Textured powder coating, Effect: Antracit RAL7016

€404,49
without VAT
€497,52
with VAT
Tax included Shipping calculated at checkout.
SET
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Parametre

Material
Type of material
Stainless steel AISI 304/Aluminium
Surface finish
Surface finish of product
Textured powder coating
Effect
Vyberte si farebný odtieň.
Antracit RAL7016

Na stiahnutie

PDF
Instalation manual

Časti zostavy

Set hliníkového stĺpika 50x60 a krytky - 1850mm R7016

Set of aluminum post 50x60 and cap - 1850mm R7016 FG/P50x60-1850-R7016

2 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Krycia lišta úzka pre stĺpikove profily 1850mm R7016

Narrow cover strip for post profiles 1850mm R7016 FG/PC20x8-1850-R7016

3 pcs
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Hliníková krytka stĺpika 50x60 R7016

Aluminum cap for post 50x60 R7016 FG/CP50x60-R7016

2 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Skrutka s valcovou hlavou s vnútorným šesťhranom, AISI304, M10x60

Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60

4 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
60
Skrutka do plechu so zápustnou hlavou-TORX, nerezová

Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22

8 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
22
Držiak pántu pre rámovy profil 50x60 R7016

Hinge holder for frame profile 50x60 R7016 FG/CH50x60-R7016

2 pcs
Material
Stainless steel AISI 304
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Hliníková plotová výplň 20x100x1,1 - 1000mm antracit R7016 Hliníková plotová výplň 20x100x1,1 - 1000mm antracit R7016

Aluminum fence infill 20x100x1,1-1000mm FG/S20x100x1,1-1000-R7016

13 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Required products
Krycia lišta úzka pre stĺpikove profily 20mm R7016

Narrow cover strip for post profiles 20mm R7016 FG/PC20x8-20-R7016

28 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Skrutka samovrtná so 6-hr. hlavou, nerezová

Self-tapping screw with hex head, stainless steel A-DIN 7504K-A2 4,2x16

60 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
16
Záves nastaviteľný s prírubou (vrchný+spodný) Záves nastaviteľný s prírubou (vrchný+spodný)

Adjustable hinge with anchoring flange D4/84-40x40-BLACK

1 pcs
Material
Steel
Surface finish
Powder coating
Weight of gate Gmax/Goptimal (kg)
120
Kľučka guľa pevná - pár, AISI 304, K320

Door handle with plate, pair AISI 304, K320 D8/05G-L-i

1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
t
1
Zámok K411 pre cylin.vložku do JP profilu 40x40mm Zámok K411 pre cylin.vložku do JP profilu 40x40mm

Cylinder lock for JP profile 40x40mm B1/30-25x90

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Hobes
Skrutka do dreva so zápustnou hlavou, nerezová, AISI304, 5x35

Cross recessed countersunk head chipboard screw, stainless steel, AISI304, 5x35 A-DIN 7505A 5x35

2 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
35
Vložka cylindrická obojstranná 40/40mm Vložka cylindrická obojstranná 40/40mm

Double lock cylinder 40/40mm B1/19N-80

1 pcs
Material
Brass
Surface finish
Nickel
L
35
Hliníkový dorazový profil brány

Aluminum gate stop profile FG/DS40x20-2000-R7016

1 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Required products
Gumový doraz pre bránky

Rubber stopper for gates A19/4466-M

2 pcs
Material
Rubber
Effect
Black
Required products
Skrutka do dreva s polguľatou hlavou, nerezová

Pan head chipboard screw, full thread, stainless steel A-PH 5x20

5 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
20
Doraz bránky univerzálny 30x15, Inox

Gate end stop, universal 30x15 Inox B8/07T-30x15

1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
Set hliníkového stĺpika 50x60 a krytky pre zámkovú časť - 1850mm R7016 Set hliníkového stĺpika 50x60 a krytky pre zámkovú časť - 1850mm R7016

Set of aluminum post 50x60 and cover for lock part - 1850mm R7016 FG/P50x60M-1850-R7016

1 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
