A14/2700-000

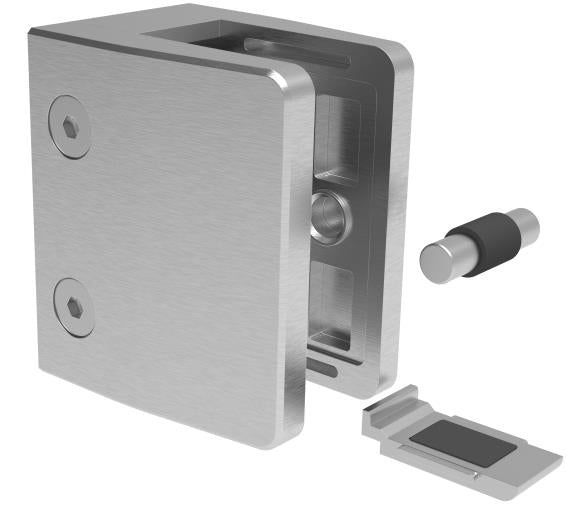

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Filling: Glass, Glass t: 17,52/20,76/21,52, Post: flat, Model: Model 27

€19,50
without VAT
€23,99
with VAT
Tax included Shipping calculated at checkout.
PCS
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

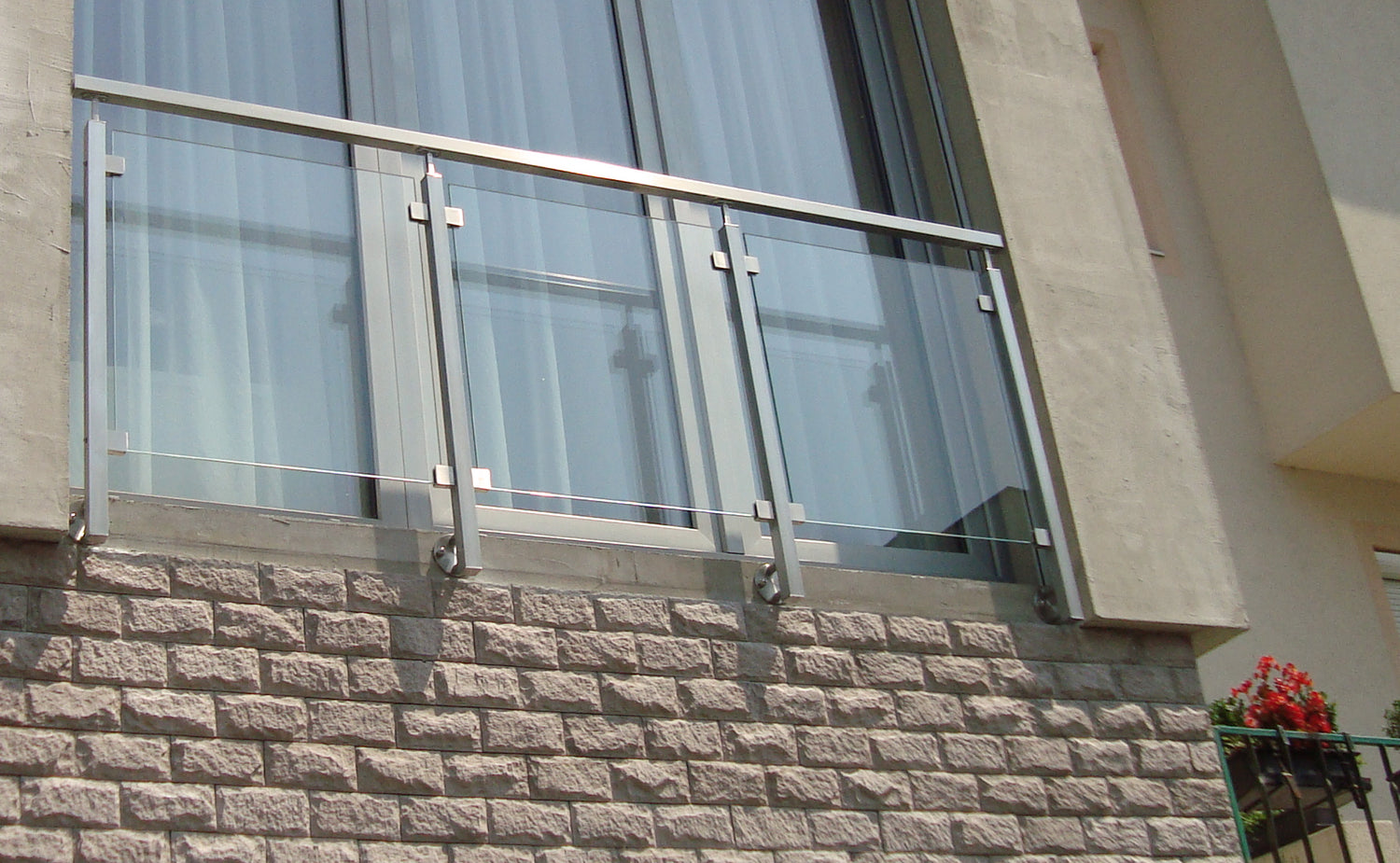

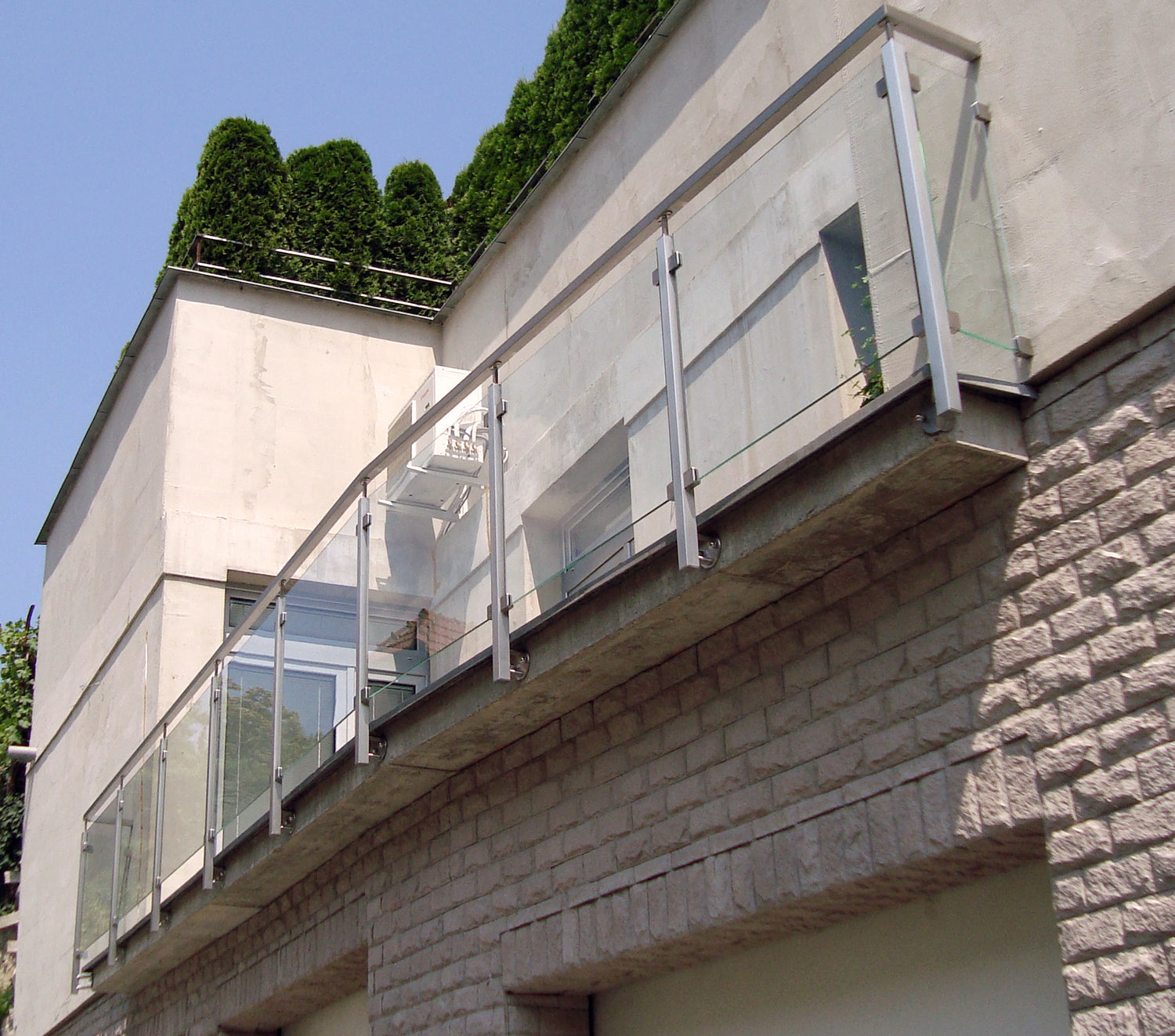

The glass (sheet metal, plate) infill holder is a structural element used to fix and stabilize the glass or sheet infill in various constructions, such as railings, balconies or staircases. This holder ensures a firm and secure attachment of the filling, thus increasing the overall stability and safety of the structure. They are part of modern architectural solutions that combine functionality, safety and aesthetic appearance. When choosing a holder, it is important to consider its material, design, functionality and compatibility with a specific filling and overall construction. Full holding - insurance against falling out is achieved using a clamping joint (recommended use for top anchoring) or clamping joint + safety pin (recommended use for lateral anchoring) or clamping joint + safety plate (recommended use for lateral anchoring). The holder does not contain a seal (necessity to purchase 2 pcs of seals for the holder according to the thickness of the glass).

Parametre

Držiak výplne skla
Material
Type of material
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
17,52/20,76/21,52
Filling
Determines use based on the size and shape of the infill
Glass
Model
MODEL
Model 27
Post
Determines use based on the size and shape of the post
flat

Na stiahnutie

PDF

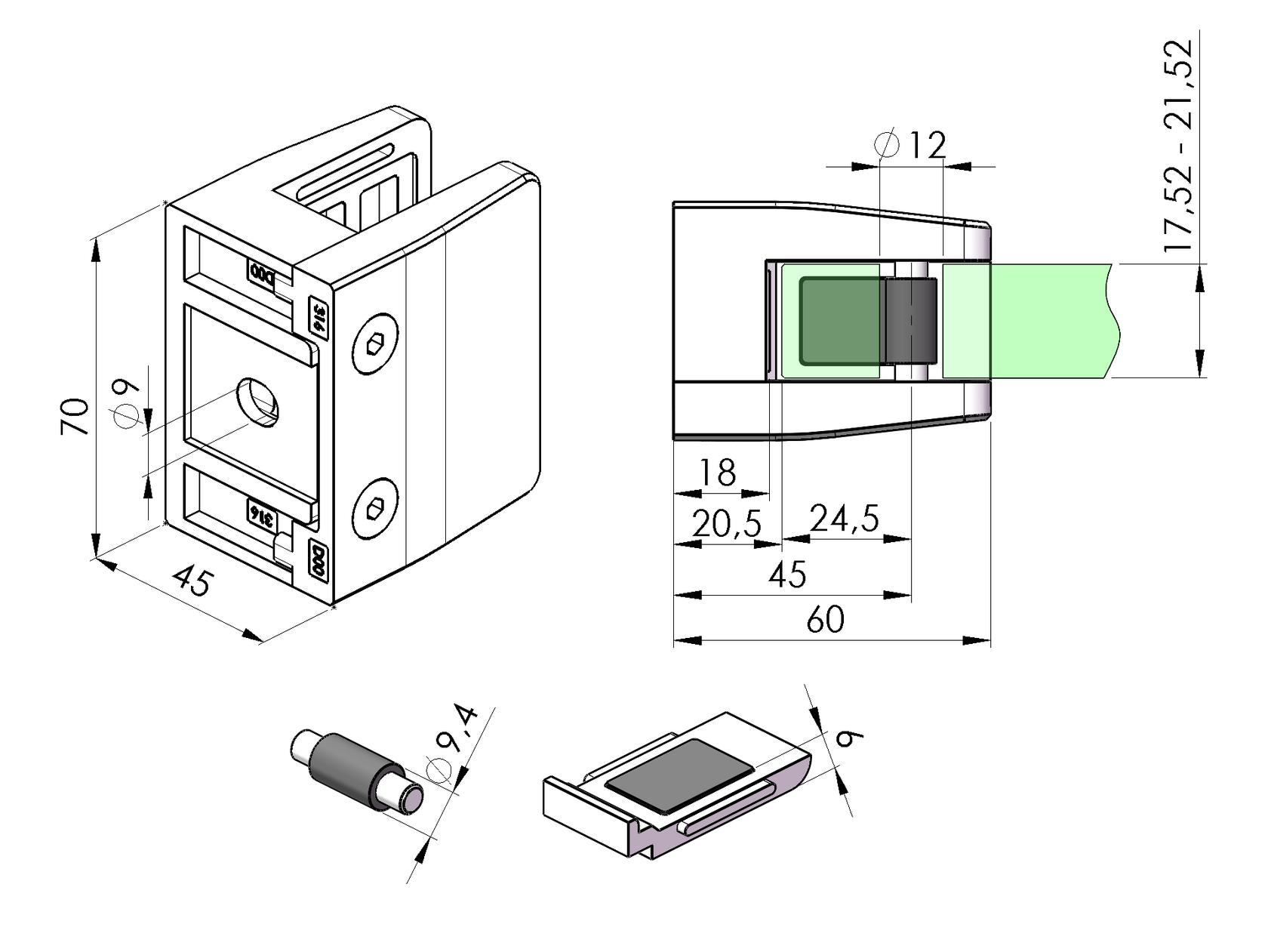

Parametric drawing
STEP
STEP file
JPG
Instalation manual
PDF
Declaration of conformity certificate
