FG/S-DSG-R7016-SET

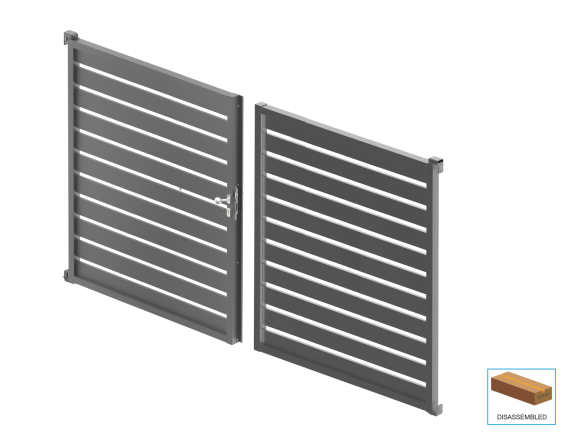

Double-wing aluminium gate 3.92x1.85m with 20x100 R7016 filling - set

Material: Stainless steel AISI 304/Aluminium, Surface finish: Textured powder coating, Effect: Antracit RAL7016

€1.067,73
without VAT
€1.313,31
with VAT
Tax included Shipping calculated at checkout.
SET
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

The double-leaf aluminium gate with dimensions of 3.92 x 1.85 m is a modern and elegant solution for your home. The door panel is made up of 20 x 100 mm slats separated by 20 mm gaps, ensuring a balance between privacy and light access. This design provides an elegant appearance and maintains an open atmosphere, which is particularly important in family homes and gardens.

Powder coated for long life
The door is coated with a durable anthracite powder coating (RAL 7016), which increases its resistance to mechanical wear, sunlight and adverse weather conditions. The textured surface not only adds aesthetic dimension but also ensures a long service life, minimising the need for regular maintenance. EN AW-6060-T6 aluminium, resists corrosion, ensuring that the gate retains its original appearance even after years.

Simple and quick installation - no welding
The gate is supplied as an assembly kit, which means that installation is quick and easy. It does not require welding, which simplifies the whole assembly process. For a list of the components included in the kit, please refer to the Parts section of the kit. The set does not include anchoring material.

Universal use
The double-leaf gate is a great choice for family homes, gardens and commercial buildings. With its modern design and quality craftsmanship, it will add a stylish and secure approach to your exterior. The combination of practical features and aesthetic appeal makes this gate ideal for everyone.

Parametre

Material
Type of material
Stainless steel AISI 304/Aluminium
Surface finish
Surface finish of product
Textured powder coating
Effect
Vyberte si farebný odtieň.
Antracit RAL7016

Na stiahnutie

PDF
Instalation manual

Časti zostavy

Set hliníkového stĺpika 50x60 a krytky - 1850mm R7016

Set of aluminum post 50x60 and cap - 1850mm R7016 FG/P50x60-1850-R7016

7 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Krycia lišta úzka pre stĺpikove profily 1850mm R7016

Narrow cover strip for post profiles 1850mm R7016 FG/PC20x8-1850-R7016

8 pcs
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Hliníková krytka stĺpika 50x60 R7016

Aluminum cap for post 50x60 R7016 FG/CP50x60-R7016

4 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Skrutka s valcovou hlavou s vnútorným šesťhranom, AISI304, M10x60

Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60

8 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
60
Skrutka do plechu so zápustnou hlavou-TORX, nerezová

Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22

16 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
22
Držiak pántu pre rámovy profil 50x60 R7016

Hinge holder for frame profile 50x60 R7016 FG/CH50x60-R7016

4 pcs
Material
Stainless steel AISI 304
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Hliníková plotová výplň 20x100x1,1 - 2000mm antracit R7016 Hliníková plotová výplň 20x100x1,1 - 2000mm antracit R7016

Aluminum fence infill 20x100x1,1-2000mm FG/S20x100x1,1-2000-R7016

26 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Required products
Krycia lišta úzka pre stĺpikove profily 20mm R7016

Narrow cover strip for post profiles 20mm R7016 FG/PC20x8-20-R7016

56 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Skrutka samovrtná so 6-hr. hlavou, nerezová

Self-tapping screw with hex head, stainless steel A-DIN 7504K-A2 4,2x16

120 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
16
Záves nastaviteľný s prírubou (vrchný+spodný) Záves nastaviteľný s prírubou (vrchný+spodný)

Adjustable hinge with anchoring flange D4/84-40x40-BLACK

2 pcs
Material
Steel
Surface finish
Powder coating
Weight of gate Gmax/Goptimal (kg)
120
Kľučka guľa pevná - pár, AISI 304, K320

Door handle with plate, pair AISI 304, K320 D8/05G-L-i

1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
t
1
Doraz bránky univerzálny 30x15, Inox

Gate end stop, universal 30x15 Inox B8/07T-30x15

1 pcs
Material
Stainless steel AISI 304
Surface finish
Satined
Skrutka do dreva s polguľatou hlavou, nerezová

Pan head chipboard screw, full thread, stainless steel A-PH 5x20

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
20
Zámok K411 pre cylin.vložku do JP profilu 40x40mm Zámok K411 pre cylin.vložku do JP profilu 40x40mm

Cylinder lock for JP profile 40x40mm B1/30-25x90

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Hobes
Skrutka do dreva so zápustnou hlavou, nerezová, AISI304, 5x35

Cross recessed countersunk head chipboard screw, stainless steel, AISI304, 5x35 A-DIN 7505A 5x35

2 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
35
Vložka cylindrická obojstranná 40/40mm Vložka cylindrická obojstranná 40/40mm

Double lock cylinder 40/40mm B1/19N-80

1 pcs
Material
Brass
Surface finish
Nickel
L
35
Hliníkový dorazový profil brány

Aluminum gate stop profile FG/DS40x20-2000-R7016

1 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Required products
Gumový doraz pre bránky

Rubber stopper for gates A19/4466-M

2 pcs
Material
Rubber
Effect
Black
Required products
Zástrč brány INOX, L300mm

Gate socket, Inox, L300mm D8/12-300

1 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
a
300
Doraz stredový pevný nerez, 158x138x50mm Doraz stredový pevný nerez, 158x138x50mm

Stop center fixed inox, 158x138x50mm B8/32

1 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
A
158
Skrutka do dreva so zápustnou hlavou, nerezová, AISI316, 5x45

Cross recessed countersunk head chipboard screw, stainless steel, AISI316, 5x45 A4-DIN 7505A 5x45

4 pcs
Material
Stainless steel AISI 316
Surface finish
Raw
L
45
Set hliníkového stĺpika 50x60 a krytky pre zámkovú časť - 1850mm R7016 Set hliníkového stĺpika 50x60 a krytky pre zámkovú časť - 1850mm R7016

Set of aluminum post 50x60 and cover for lock part - 1850mm R7016 FG/P50x60M-1850-R7016

1 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Hliníková plotová výplň 20x120x1,2 - 2000mm antracit R7016

Aluminum fence infill 20x120x1,2-2000mm FG/S20x120x1,2-2000-R7016

4 pcs
Material
Aluminium
Surface finish
Textured powder coating
Effect
Antracit RAL7016
Required products
