AL/PR7-1500-N-E-SET1

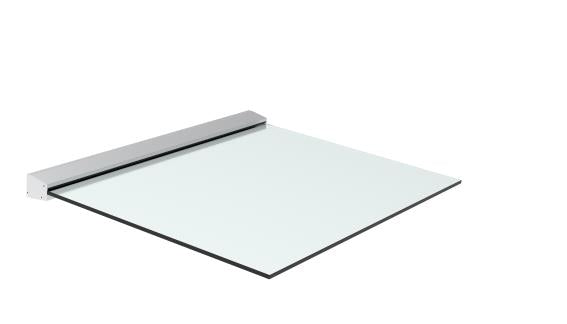

Canopy with aluminium channel profile

Material: Aluminium/EPDM/Plastic, Surface finish: Raw, Glass t: 12,76-13,52/16,76-17,52/20,76-21,52, L: 1500, Quality: VSG/TVG, G/h kN: 1,5

€305,78
without VAT
€376,11
with VAT
Tax included Shipping calculated at checkout.
SET
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

Glass roof aluminum for safety laminated glass 12.76-13.52 / 16.76-17.52 / 20.76-21.52. The set includes an aluminum profile, end caps, sealing, and necessary parts for the final assembly of the glass. Aluminum strip for glass shelter supplied without glass and anchoring material.

Parametre

Presklená strieška hliník profil
Material
Type of material
Aluminium/EPDM/Plastic
Surface finish
Surface finish of product
Raw
Glass t
Determines the thickness of the glass in mm the product is suitable for
12,76-13,52/16,76-17,52/20,76-21,52
L
1500
G/h kN
1,5
Quality
VSG/TVG

Na stiahnutie

STEP
STEP file
PDF

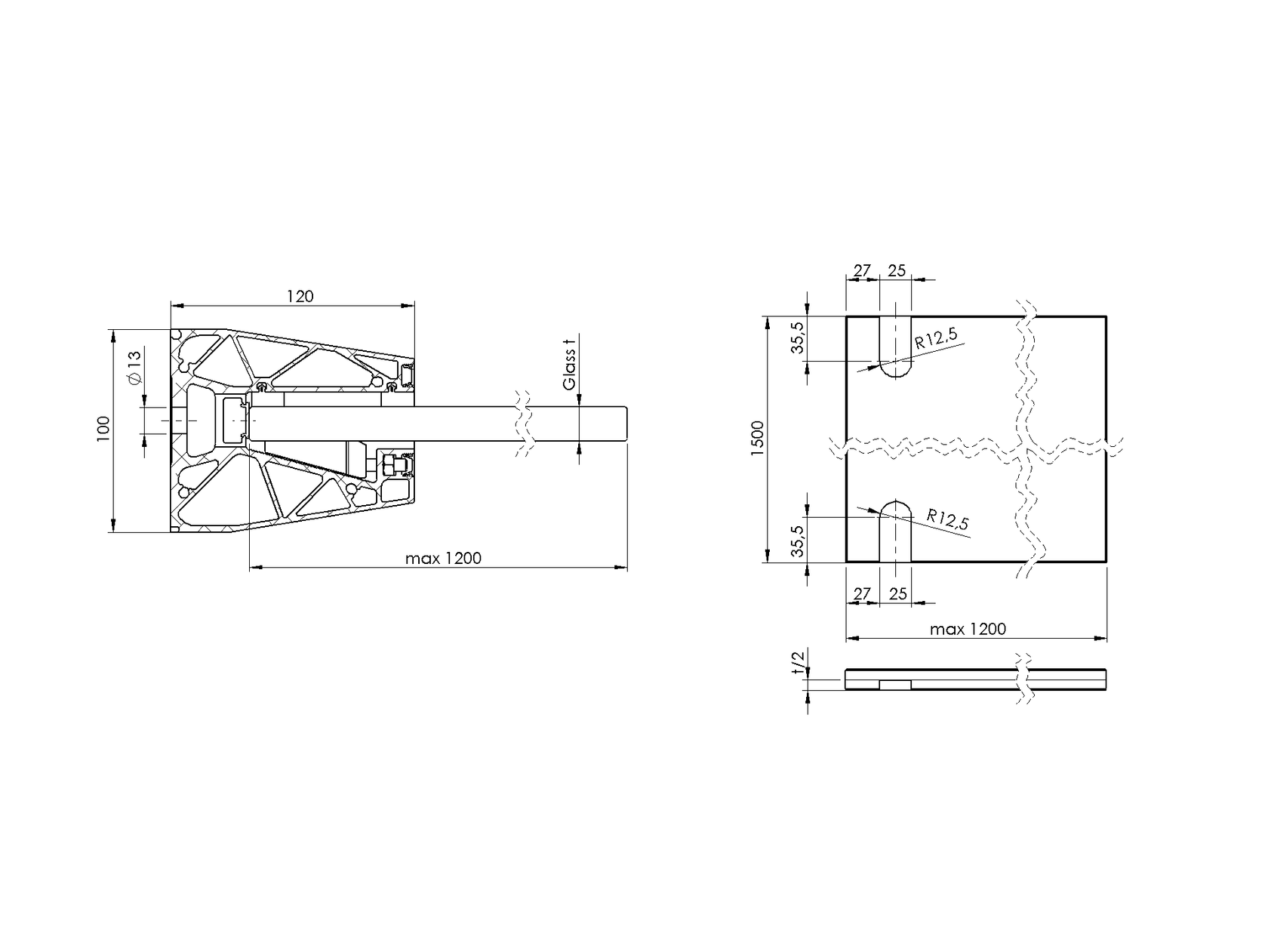

Parametric drawing
PDF
Instalation manual
PDF
Certificate report
PDF
Test report

Časti zostavy

Kotviaci klin pre prístrešok PR7

Kotviaci klin pre prístrešok PR7 A19/PR7-1

7 pcs
Material
ABS
Surface finish
Raw
Difúzor pre LED profil, milk

Diffuser for LED profile A19/23x24-LED-PVC

1 pcs
Material
PVC
Surface finish
Milky
L
2500
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-013-03.0

1 pcs
Material
EPDM
Glass t
12,76-13,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-017-03.0

1 pcs
Material
EPDM
Glass t
16,76-17,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-021-03.0

1 pcs
Material
EPDM
Glass t
20,76-21,52
L
3000
Skrutka nastavovacia s plochým koncom, AISI304, M6x35

Hexagon socket set screw with flat point, AISI304, M6x35 A-DIN 913-A2 M6x35

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
35
Matica šesťhranná štandardná, nerezová

Hexagon nut, stainless steel A-DIN 934 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
M
6
Skrutka s polguľatou hlavou s vnútor.šesťhranom, AISI304, M6x12

Hexagon socket button head screw, AISI304, M6x12 A-DIN 7380-A2 M6x12

6 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
12
Skrutka s valcovou hlavou s vnútorným šesťhranom, AISI304, M6x20

Hexagon socket head cap screw, AISI304, M6x20 A-DIN 912-A2 M6x20

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
20
Matica štvorhranná, nerezová

Square nut, stainless steel A-DIN 562 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
M
6
Kotviaci klin pre prístrešok PR7

Kotviaci klin pre prístrešok PR7 A19/PR7-2

2 pcs
Material
ABS
Surface finish
Raw
