F-1000

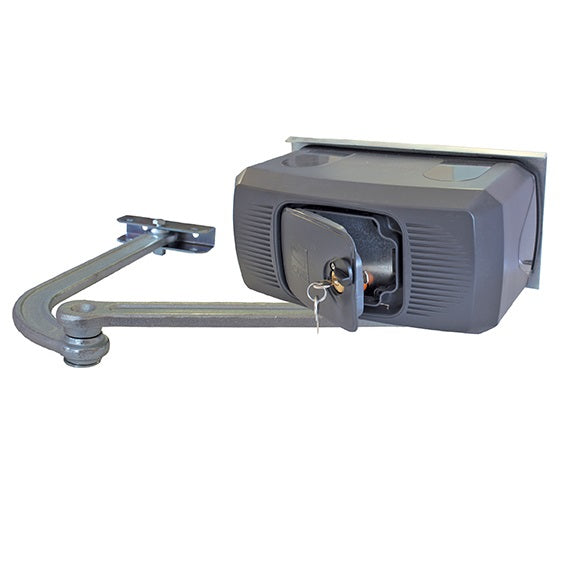

CAME articulated drive for swing gate

Mark: Came, Max. wing length: 4m, Recommended weight of the wing: 200kg, End point: No need end points, Motor power supply: AC 230V, Performance: 140W, Force: 540Nm, Speed: 90° - 34s, Type: Jointed, Capacitor: 10uF, Protection level: IP44

€321,96
without VAT
€396,01
with VAT
Tax included Shipping calculated at checkout.
PCS
Stock availability

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Parametre

Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
4m
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
200kg
Type
TYP
Jointed
End point
Informácia o potrebe koncových dorazov brány pri zvolenom pohone.
No need end points
Motor power supply
Drive-unit power supply
AC 230V
Performance
140W
Force
540Nm
Speed
Parameter of the drive feed speed
90° - 34s
Protection level
IP44
Capacitor
10uF

Na stiahnutie

PDF
Spare parts catalog

Katalog

V setoch

CAME kĺbový pohon pre jednokrídlovú bránu, sada. CAME kĺbový pohon pre jednokrídlovú bránu, sada.

CAMCAME articulated drive for E joint drive for single-leaf gate, set. FERNI-LEFT/RIGHT-ZKIT

Mark
Came
Recommended weight of the wing
200kg
Drive slowdown
Drive not decelerate
€522,12
without VAT
€642,21 with VAT
Low stock (11 units)
SET
Related products
Part of set
Externý prijímač 2kan. univerzálny - pevný kód

External double-channel receiver - fixed code MP/RX-F2

Mark
Rollkit
€17,91
without VAT
€22,03 with VAT
In stock (552 units)
PCS
Univerzálny diaľkový ovládač pre CAME, KEY,... 433

Universal remote control 433MHz, 4CH, Rollkit FIX-FQ

Mark
Rollkit
Frequency (MHz)
433
Code type
Fix
€8,46
without VAT
€10,41 with VAT
In stock (7170 units)
PCS
Univerzálny diaľkový ovládač na bránu 433/868Mhz,

Universal remote control 433/868Mhz, 4CH, fix/roll MULTI-HERTZ

Mark
Rollkit
Frequency (MHz)
Multi (433/868)
Code type
Multi (fix/rolling)
€19,09
without VAT
€23,48 with VAT
In stock (894 units)
PCS
Came TOP, Diaľkové ovládanie fix code, 2CH, CAME

Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE

Mark
Came
Frequency (MHz)
433
Code type
Fix
€18,71
without VAT
€23,01 with VAT
In stock (5759 units)
PCS
Anténa CAME 433,9 MHz s koax. kablom 5m Anténa CAME 433,9 MHz s koax. kablom 5m

CAME antenna 433.9 MHz coaxial cable 5m TA-433-N

Mark
Came
€18,36
without VAT
€22,58 with VAT
In stock (526 units)
PCS
Prijímač dvojkanálový - externý 433,9MHz

Double-channel external receiver 433,9MHz RE-432M

Mark
Came
Frequency (MHz)
433
Code type
Multi (fix/rolling)
€52,77
without VAT
€64,91 with VAT
In stock (79 units)
PCS
Blikajúca lampa 230V

Blinking light 230V KLED

Mark
Came
€24,37
without VAT
€29,98 with VAT
In stock (314 units)
PCS
Fotobunka na omietku max. 10m Fotobunka na omietku max. 10m

Photocell for plaster montage max. 10m DIR-10

Mark
Came
Power supply
12-24V AC
Protection level
IP54
€41,96
without VAT
€51,61 with VAT
In stock (433 units)
PAIR
CAME kĺbový pohon pre krídlovú bránu CAME kĺbový pohon pre krídlovú bránu

CAME articulated drive for swing gate F-1000

1 pcs
Mark
Came
Max. wing length
4m
Recommended weight of the wing
200kg
Skrinka s elektron.pre dvojkr.bránu-základ.funkcie

Electronics cabinet for double-leaf gate ZF-1N

1 pcs
Mark
Came
Rádiová karta 433,9 MHz

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came
Came TOP, Diaľkové ovládanie fix code, 2CH, CAME

Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Fix
Fotobunka na omietku max. 10m Fotobunka na omietku max. 10m

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
CAME kĺbový pohon pre dvojkrídlovú bránu, sada s fotobunkami CAME kĺbový pohon pre dvojkrídlovú bránu, sada s fotobunkami

CAME articulated drive for double-leaf gate, set with photocells FERNI-ZKIT

Mark
Came
Max. wing length
4m
Recommended weight of the wing
200kg
€853,45
without VAT
€1.049,74 with VAT
Very low stock (5 units)
SET
Part of set
CAME kĺbový pohon pre krídlovú bránu CAME kĺbový pohon pre krídlovú bránu

CAME articulated drive for swing gate F-1000

2 pcs
Mark
Came
Max. wing length
4m
Recommended weight of the wing
200kg
Skrinka s elektron.pre dvojkr.bránu-základ.funkcie

Electronics cabinet for double-leaf gate ZF-1N

1 pcs
Mark
Came
Rádiová karta 433,9 MHz

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came
Came TOP, Diaľkové ovládanie fix code, 2CH, CAME

Remote controller CAME TOP fix code, 2CH, CAME TOP-432-EE

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Fix
Fotobunka na omietku max. 10m Fotobunka na omietku max. 10m

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
