A5/08-VM 250-M12-160-A4

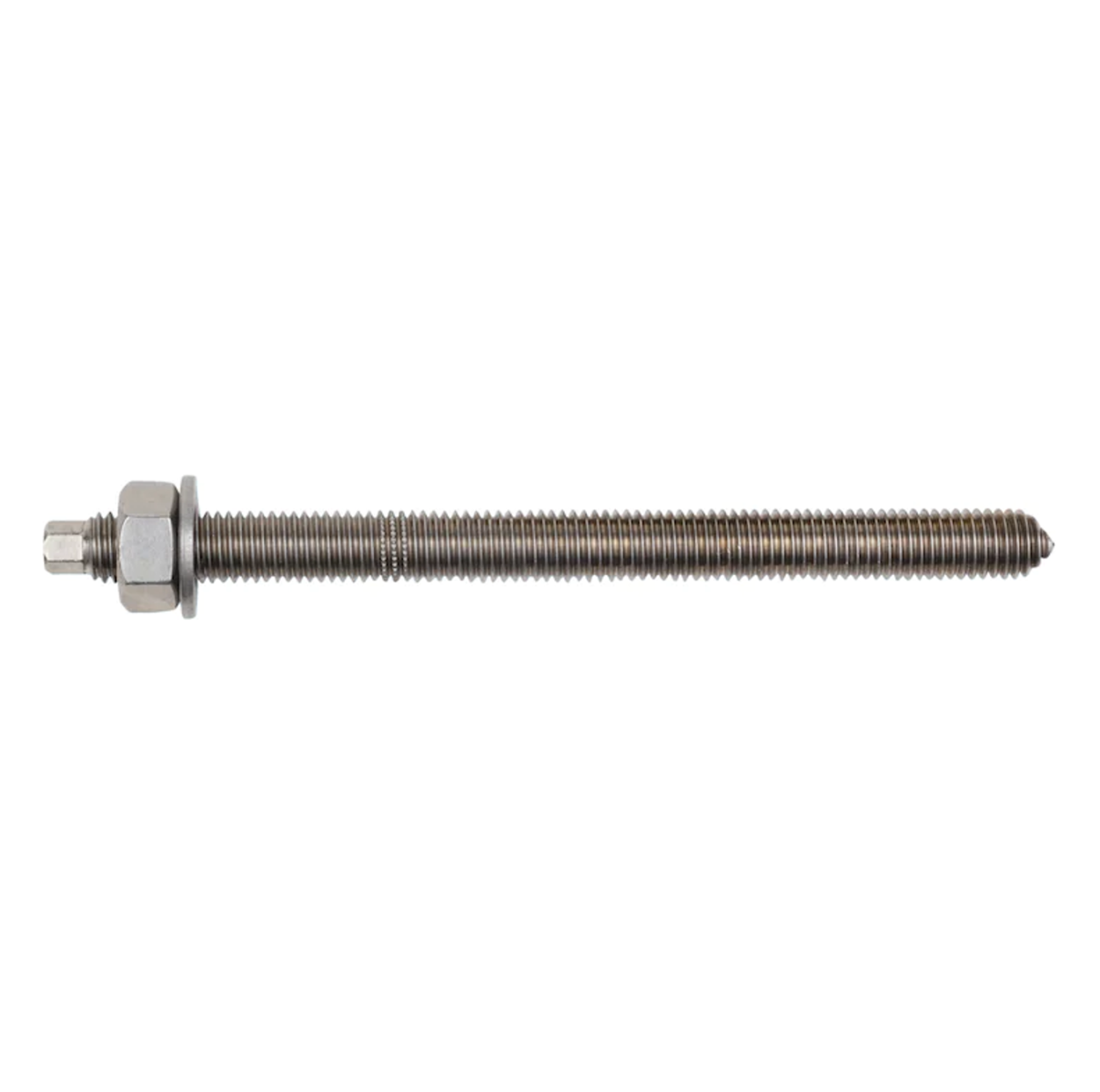

Anchor rod - stainless steel, AISI316, M12, L160
€6,44
Unit price
/
Unavailable
without VAT
with VAT
Stock availability
SK Krompachy
0
SK Banská Bystrica
0
SK Bratislava R1
0
Kontakt
Kontakt
Add some general information about your delivery and shipping policies.
lubomir.petruska@umakov.sk
+421915093533 +393483490444
Anchor rod - stainless steel, AISI316, M12, L160
€6,44
Unit price
/
Unavailable
Popis
Anchor rod with peak angle and hex socket (allows rotary impact insertion with cassette system)
Usage:
- in dry indoor spaces
- outdoors (including use in industrial atmospheres and coastal areas) or in humid rooms, unless particularly aggressive conditions are present.
Approval:
ETA-06/0074
ETA-09/0040
ETA-12/0164
ETA-05/0034
ETA-12/0569
ETA-17/0127
ETA-19/0543
ETA-21/0168
Metric anchor diameter: M12
Property class: 70
Attachment height: 35 mm
Anchor length: 160 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm
Usage:
- in dry indoor spaces
- outdoors (including use in industrial atmospheres and coastal areas) or in humid rooms, unless particularly aggressive conditions are present.
Approval:
ETA-06/0074
ETA-09/0040
ETA-12/0164
ETA-05/0034
ETA-12/0569
ETA-17/0127
ETA-19/0543
ETA-21/0168
Metric anchor diameter: M12
Property class: 70
Attachment height: 35 mm
Anchor length: 160 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm
Parametre
Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Raw
L
Length parameter of the product
160
Use
Anchoring
M
12
