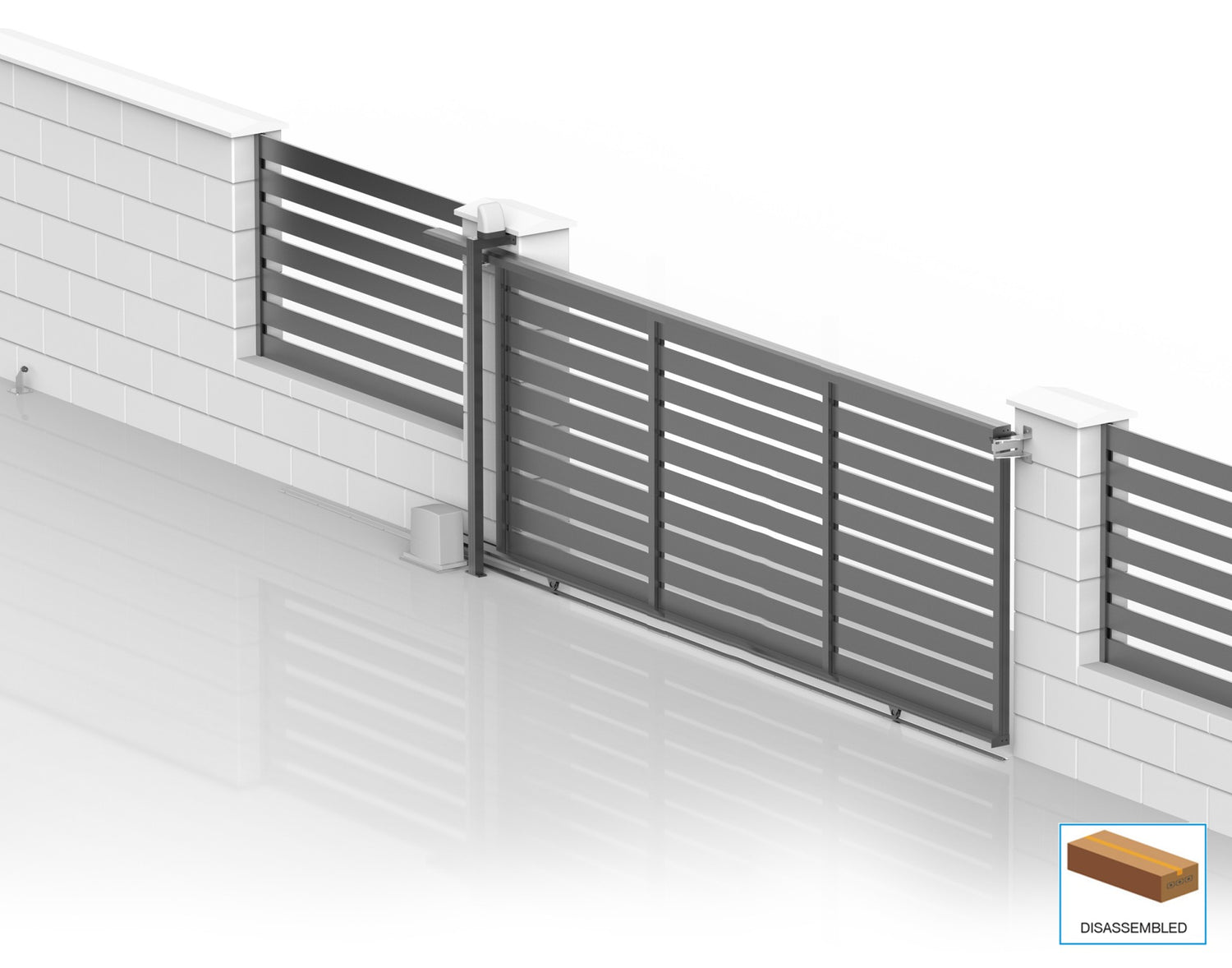

Aluminium sliding gate 6x2.045m with 20x100 R7016 filling - set
Popis
Powder coating and durability
The door is finished in an elegant anthracite colour (RAL 7016), known for its timeless elegance and ability to blend in perfectly with its surroundings. The powder-coated finish provides exceptional protection against external influences, ensuring long life and minimal maintenance. Thanks to this finish, the gate is resistant to scratches, corrosion and fading, thus retaining its attractive appearance even after years.
Easy installation
The roller sliding gate is delivered as a disassembled assembly kit. It is designed to be quick and easy to assemble, with no welding required. For a list of the components included in the set, please refer to the parts section of the set. The set does not include anchoring material. The precisely designed mounting system ensures that the gate will be strong and stable, while retaining an attractive appearance.
Combination of aesthetic and functional design
This roller sliding door model is a great choice for those looking for a stylish and practical solution for their home. It is suitable for family homes, commercial properties and modern exteriors, while guaranteeing a high level of privacy and security. With this gate, you can be sure to add value and aesthetics to your property, while at the same time making use of modern technology and quality materials.
Parametre
Časti zostavy
Set of aluminum post 50x60 and cap - 6000mm R7016 FG/P50x60-6000-R7016
Set of aluminum post 50x60 and cap - 1850mm R7016 FG/P50x60-1850-R7016
Narrow cover strip for post profiles 1850mm R7016 FG/PC20x8-1850-R7016
Aluminum cover for sliding gate guide profiles 105x50 R7016 FG/CA105x50-R7016
Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60
Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22
Aluminum fence infill 20x100x1,1-2000mm FG/S20x100x1,1-2000-R7016
Narrow cover strip for post profiles 20mm R7016 FG/PC20x8-20-R7016
Self-tapping screw with hex head, stainless steel A-DIN 7504K-A2 4,2x16
Top guide profile for sliding gates 6000mm R7016 FG/UG54x50-6000-R7016
Nylon wheel with bearing, Zn, anthracite H/53-R7016
Guiding profile bottom for sliding gates 6000mm R7016 FG/BG54x50-6000-R7016
Lightweight tooth rack,max 300kg PVC,light,16x20 H/01PVC-AL
Assembly set for nylon combs H/01PVC-AL H/01PVC-FS-AL
Cross recessed countersunk head chipboard screw, stainless steel, AISI304, 5x35 A-DIN 7505A 5x35
Wheel for sliding gates with V groove INOX, D80 H8/31V-80
Hexagon socket head cap screw, AISI304, M8x45 A-DIN 912-A2 M8x45
Hexagon nut, stainless steel A-DIN 934 M8
Plain washer, stainless steel, M8 A-DIN 125-A2 M8
Bottom guiding rail, V, INOX, L6000mm H8/39V-6000
Upper slope, Zn, profile 60mm, H/37-60P
Universal holder, INOX H8/16-46x130
Hexagon nut, stainless steel A-DIN 934 M10
Plain washer, stainless steel, M10 A-DIN 125-A2 M10
Hexagon socket button head screw, AISI304, M10x20 A-DIN 7380-A2 M10x20
