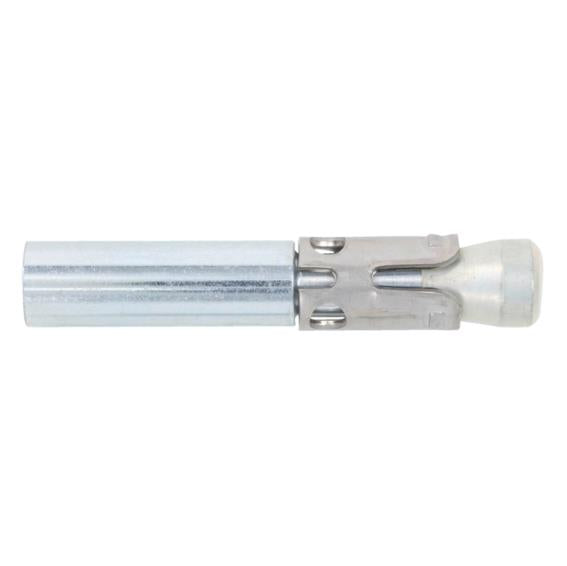

Female thread fixing bolt anchor FAZ-IG M10
€3,95
Unit price
/
Unavailable
Popis
Würth threaded anchor with internal thread for high loads in cracked and uncracked concrete, ideal for keeping the surface of the part to be fixed clean. Galvanized steel.
High load capacity, small distance between the centers and the edge
Instant load capacity - no waiting
Expansion anchor with torque control made of galvanized steel
Safe expansion in cracked concrete thanks to the cone of the fixing anchor with a patented plastic surface treatment
Countersunk screws ensure the elegant appearance of visible anchors, which is complemented by high load capacity (e.g. railing)
Also suitable for temporary anchoring (pin installation, e.g. flexible seating at the stadium - flush with the surface to eliminate the risk of injury)
Area of use
Individual attachment with approval
Standard concrete C20/25 to C50/60 (cracked and uncracked concrete)
For example metal structures, metal profiles, brackets, risers, supports, cable lines, pipes, railings, wooden structures, beams, stadium seating, etc.
Individual attachment without approval
Can be used in concrete < C20/25 and pressure-resistant natural stone
It can only be used in dry indoor spaces
High load capacity, small distance between the centers and the edge
Instant load capacity - no waiting
Expansion anchor with torque control made of galvanized steel
Safe expansion in cracked concrete thanks to the cone of the fixing anchor with a patented plastic surface treatment
Countersunk screws ensure the elegant appearance of visible anchors, which is complemented by high load capacity (e.g. railing)
Also suitable for temporary anchoring (pin installation, e.g. flexible seating at the stadium - flush with the surface to eliminate the risk of injury)
Area of use
Individual attachment with approval
Standard concrete C20/25 to C50/60 (cracked and uncracked concrete)
For example metal structures, metal profiles, brackets, risers, supports, cable lines, pipes, railings, wooden structures, beams, stadium seating, etc.
Individual attachment without approval
Can be used in concrete < C20/25 and pressure-resistant natural stone
It can only be used in dry indoor spaces
Parametre
Material
Type of material
Steel
Surface finish
Surface finish of product
Galvanized
